Genesis Supreme Genesis Supreme Toy Hauler Travel Trailer

Previous
Next
1 of 36

The Genesis Supreme exclusive fifth wheel and travel trailer Toy Haulers bring all the comforts of home to any rugged outdoor adventure you find.  Each floor plan has been designed to provide the same comforts found in a class A motorhome, but are tough enough for the demands of your favorite ride on toys. The Genesis Supreme models also feature more tie downs than any other toy hauler to keep all of your cargo safe and secure when traveling.



Enjoy complete kitchen and bath amenities, comfortable sleeping for your family or a few friends including the power lift bed in most models, plus room for all of your toys.  Choose from several floor plans and get the size that is perfect for you.



For all of the adventures that require a few big toys, choose an exclusive Genesis Supreme toy hauler travel trailer or fifth wheel. Come select your model today!

  • Genesis Supreme 19 SS

    Genesis Supreme 19 SS Floorplan Image

    This Genesis Supreme toy hauler travel trailer will easily get you and your toys ... more about Genesis Supreme 19 SS

    Specifications

    Sleeps 6
    Length 24 ft 4 in
    Ext Width 8 ft 6 in
    Ext Height 11 ft 7 in
    Int Height 0 ft
    Interior Color Taupe, Slate, Supreme Brown, Supreme Black
    Exterior Color Silver, Red, Blue
    Hitch Weight 620 lbs
    Gross Weight 8200 lbs
    Dry Weight 5620 lbs
    Fresh Water Capacity 100 gals
    Grey Water Capacity 32 gals
    Black Water Capacity 32 gals
    Tire Size 15"
    Furnace BTU 30000 btu
    Number Of Bunks 1
    Available Beds Full
    Refrigerator Type Large Double Door
    Refrigerator Size 6 cu ft
    Cooktop Burners 3
    Number of Awnings 1
    Axle Weight 4600 lbs
    Garage Size 14 ft 5 in
    LP Tank Capacity 20 lbs.
    Water Heater Capacity 6 gal.
    Water Heater Type DSI LP
    AC BTU 13500 btu
    Awning Info manual
    Axle Count 2
    Number of LP Tanks 2
    Shower Type Tub/Shower Combo

    Similar Floorplans

  • Genesis Supreme 22 FS

    Genesis Supreme 22 FS Floorplan Image

    If you feel like taking on a little adventure this weekend, then you might want ... more about Genesis Supreme 22 FS

    Have a question about this floorplan? Contact Us

    Specifications

    Sleeps 6
    Ext Width 8 ft 6 in
    Ext Height 11 ft 7 in
    Int Height 0 ft
    Interior Color Taupe, Slate
    Exterior Color Silver, Red, Blue
    Gross Weight 9900 lbs
    Dry Weight 6160 lbs
    Cargo Weight 3738 lbs
    Fresh Water Capacity 100 gals
    Grey Water Capacity 40 gals
    Black Water Capacity 40 gals
    Tire Size 15"
    Furnace BTU 30000 btu
    Fuel Capacity 40 gals
    Number Of Bunks 1
    Available Beds Full
    Refrigerator Size 6 cu ft
    Cooktop Burners 3
    Number of Awnings 1
    Garage Size 0 ft
    Water Heater Capacity 6 gal.
    Water Heater Type DSI
    Axle Count 2
    Shower Type Angled
  • Genesis Supreme 23 FS

    Genesis Supreme 23 FS Floorplan Image

    If you have off-road toys and enjoy outside adventure plus prefer inside ... more about Genesis Supreme 23 FS

    Specifications

    Sleeps 4
    Length 27 ft
    Ext Width 8 ft 6 in
    Ext Height 11 ft 7 in
    Int Height 0 ft
    Interior Color Taupe, Slate, Supreme Brown, Supreme Black
    Exterior Color Silver, Red, Blue
    Hitch Weight 1000 lbs
    Gross Weight 9900 lbs
    Dry Weight 6060 lbs
    Fresh Water Capacity 100 gals
    Grey Water Capacity 40 gals
    Black Water Capacity 40 gals
    Tire Size 15"
    Furnace BTU 30000 btu
    Available Beds Full
    Refrigerator Type Large Double Door
    Refrigerator Size 6 cu ft
    Cooktop Burners 3
    Number of Awnings 1
    Axle Weight 5060 lbs
    Garage Size 13 ft 1 in
    LP Tank Capacity 20 lbs.
    Water Heater Capacity 6 gal.
    Water Heater Type DSI LP
    AC BTU 13500 btu
    Awning Info Manual
    Axle Count 2
    Number of LP Tanks 2
    Shower Type Angled

    Similar Floorplans

  • Genesis Supreme 23 SS

    Genesis Supreme 23 SS Floorplan Image

    You will find plenty of fun and adventure with this Genesis Supreme toy hauler ... more about Genesis Supreme 23 SS

    Specifications

    Sleeps 8
    Length 29 ft
    Ext Width 8 ft 6 in
    Ext Height 11 ft 7 in
    Int Height 0 ft
    Interior Color Taupe, Slate, Supreme Brown, Supreme Black
    Exterior Color Silver, Red, Blue
    Hitch Weight 800 lbs
    Gross Weight 9900 lbs
    Dry Weight 6500 lbs
    Fresh Water Capacity 100 gals
    Grey Water Capacity 40 gals
    Black Water Capacity 40 gals
    Tire Size 16"
    Furnace BTU 30000 btu
    Number Of Bunks 1
    Available Beds Full
    Refrigerator Type Large Double Door
    Refrigerator Size 6 cu ft
    Cooktop Burners 3
    Number of Awnings 1
    Axle Weight 5440 lbs
    Garage Size 17 ft 1 in
    LP Tank Capacity 20 lbs.
    Water Heater Capacity 6 gal.
    Water Heater Type DSI LP
    AC BTU 13500 btu
    Awning Info Manual
    Axle Count 2
    Number of LP Tanks 2
    Shower Type Sunken Tub/Shower

    Similar Floorplans

  • Genesis Supreme 25 FS

    Genesis Supreme 25 FS Floorplan Image

    If you have off-road toys and enjoy outside adventure plus prefer inside ... more about Genesis Supreme 25 FS

    Specifications

    Sleeps 4
    Length 29 ft
    Ext Width 8 ft 6 in
    Ext Height 11 ft 7 in
    Int Height 0 ft
    Interior Color Taupe, Slate, Supreme Brown, Supreme Black
    Exterior Color Silver, Red, Blue
    Hitch Weight 980 lbs
    Gross Weight 9900 lbs
    Dry Weight 6340 lbs
    Fresh Water Capacity 100 gals
    Grey Water Capacity 40 gals
    Black Water Capacity 40 gals
    Tire Size 15"
    Furnace BTU 30000 btu
    Available Beds Queen
    Refrigerator Type Large Double Door
    Refrigerator Size 6 cu ft
    Cooktop Burners 3
    Number of Awnings 1
    Axle Weight 5360 lbs
    Garage Size 13 ft 3 in
    LP Tank Capacity 20 lbs.
    Water Heater Capacity 6 gal.
    Water Heater Type DSI LP
    AC BTU 13500 btu
    Awning Info Manual
    Axle Count 2
    Number of LP Tanks 2
    Shower Type Angled

    Similar Floorplans

  • Genesis Supreme 27 FS

    Genesis Supreme 27 FS Floorplan Image

    Adventure meets luxury with this Genesis Supreme 27 FS toy hauler travel ... more about Genesis Supreme 27 FS

    Have a question about this floorplan? Contact Us

    Specifications

    Sleeps 7
    Slides 1
    Length 32 ft 9 in
    Ext Width 8 ft 6 in
    Ext Height 11 ft 7 in
    Int Height 0 ft
    Interior Color Taupe, Slate, Supreme Brown, Supreme Black
    Exterior Color Silver, Red, Blue
    Hitch Weight 1320 lbs
    Gross Weight 9900 lbs
    Dry Weight 7460 lbs
    Fresh Water Capacity 100 gals
    Grey Water Capacity 40 gals
    Black Water Capacity 40 gals
    Tire Size 15"
    Furnace BTU 30000 btu
    Number Of Bunks 1
    Available Beds Queen
    Refrigerator Type Large Double Door
    Refrigerator Size 6 cu ft
    Cooktop Burners 3
    Number of Awnings 1
    Axle Weight 6140 lbs
    Garage Size 15 ft 1 in
    LP Tank Capacity 20 lbs.
    Water Heater Capacity 6 gal.
    Water Heater Type DSI LP
    AC BTU 13500 btu
    Awning Info Manual
    Axle Count 2
    Number of LP Tanks 2
    Shower Type Angled

    Similar Floorplans

  • Genesis Supreme 30 CK

    Genesis Supreme 30 CK Floorplan Image

    It's time to take your camping up a level in this Genesis Supreme toy hauler ... more about Genesis Supreme 30 CK

    Specifications

    Sleeps 5
    Slides 1
    Length 35 ft 6 in
    Ext Width 8 ft 6 in
    Ext Height 12 ft 7 in
    Interior Color Taupe, Slate, Supreme Brown, Supreme Black
    Exterior Color Silver, Red, Blue
    Hitch Weight 1700 lbs
    Gross Weight 12500 lbs
    Dry Weight 8860 lbs
    Fresh Water Capacity 100 gals
    Grey Water Capacity 50 gals
    Black Water Capacity 50 gals
    Tire Size 15"
    Furnace BTU 30000 btu
    Number Of Bunks 1
    Available Beds Queen
    Refrigerator Type Large Double Door
    Refrigerator Size 6 cu ft
    Cooktop Burners 3
    Number of Awnings 1
    Axle Weight 7100 lbs
    Garage Size 16 ft 4 in
    LP Tank Capacity 20 lbs.
    Water Heater Capacity 6 gal.
    Water Heater Type DSI LP
    AC BTU 13500 btu
    TV Info LR 32"
    Awning Info Power
    Axle Count 2
    Number of LP Tanks 2
    Shower Type Radius
    Electrical Service 30 amp

    Similar Floorplans

Genesis Supreme Features:

Standard Features (2018)



Fifth Wheel

Chassis

  • 102" Wide body platform
  • 16" Deluxe aluminum alloy wheels
  • Laminated ramp door w/full-length latches (7' 29CK & 28CR, 8' all others)
  • Fiberglass, laminated aluminum-framed sidewalls (standard 29CK & 28CR, Hi-gloss all others)
  • Low-profile platform w/wheel wells (standard 29CK & 28CR only)
  • Low-profile 10" l bean, No wheel wells (flat-to-floor) (standard 33CK & 28CR, N/A all others)
  • No wheel wells (flat-to-floor) (n/a 29CK & 28CR, optional 33CK, standard all others)
  • Upgraded Flex Suspension System (standard, optional on 29CK, 36CK, 28CR, 32CR, 35CR, 40CR)
  • Molded front fiberglass cap (n/a 33CK, 40SRSS6, and GS models)
  • Radiused front fiberglass cap with inset LED (33CK, 40SRSS6, and GS models only)
  • Spare tire and carrier
  • Stab jacks (2 rear) (n/a 33CK)
  • 2nd grey Tank (optional, n/a 28CR and CK models)
  • 20 gal fuel tank (standard 33CK, optional 36CK, 35CR, 37GS)
  • 40 gal fuel tank w/pump station (n/a 33CK)
  • 2nd 40 gal fuel tank w/pump station (optional 40CR, 40GS, 40SRSS6)

Exterior

  • LED high-end tail lights
  • LED flood lights
  • LED running lights
  • Slam-door luggage compartments (na/ 29CK & 28CR)
  • Powered awning w/LED rope lighting
  • One-piece PVC vinyl roof
  • Integrated rear spoiler
  • Keyless remote entry (optional)
  • Walk-on roof w/folding ladder (optional 29CK & 28CR , standard all others)
  • Black tank flush
  • Dual 30 lb LP tanks

Interior

  • Crown molding
  • Solid surface galley w/covers & LED edge light (optional 29CK, standard all others)
  • Galley and sofa super slide out (GS models only)
  • Carpet kit (optional 29CK & 28CR, standard all others)
  • Ceiling fan (optional 29CK & 28CR, standard all others with 2 in model 40C, 40GS, and 40SRSS6)
  • Night lights throughout (GS models only and 40SRSS6 only)
  • USB 12V chargers ((3)standard GS models and 40SRSS6 , optional all others)
  • Inset coffered ceiling panel w/LED and accent lights (n/a 29CK)
  • Water filter (optional 29CK & 28CR, standard all others)
  • LED interior lighting throughout
  • LED rope lights/living room valance (n/a 29CK)
  • 32" TV Entertainment center w/fireplace - bedroom (standard GS models only and 40SRSS6)
  • Magazine rack (color coordinated) and key hooks
  • Pleated night shades throughout
  • Rear screen wall (optional 29CK & 28CR, standard all others)
  • Skylight above shower / tub
  • Stainless steel galley sink w/pull-out faucet (standard 29CK & 28CR only)
  • Stainless steel galley sink w/high-rise pull-down faucet (n/a 29CK & 28CR)
  • Angled glass corner shower enclosure (n/a 34GS, 37GS, 40GS, 40SRSS6)
  • Upgraded power vents (optional)

Appliances

  • DSI LP water heater, 2-way 110V / LP (6 gallon 29CK & 28CR, 10 gallon all others)
  • 30K BTU furnace
  • 4.0 KW Onan / 30AMP / Transfer Switch
  • A/C living room w/ducting (BTU's) (13.5K 29CK & 28CR, all others 15K)
  • AM/FM/CD/DVD Player w/4 inside and 2 outside speakers (n/a GS models and 40SRSS6)
  • Residential style sound system and powered subwoofer (standard GS models and 40SRSS6, optional all others)
  • Large double door refrigerator (29CK & 28CR features a 6 cu. ft., all others an 8 cu. ft. model)
  • Three burner range with oven (n/a 40GS & 40SRSS6)
  • Glass top stainless range (standard 40GS & 40SRSS6, optional all others)
  • Microwave oven w/separate vent hood (light and exhaust) (29CK, 28CR 32CR, 35CR only)
  • XL Microwave oven with over-the-range exhaust (n/a 29CK, 28CR, 32CR, 35CR)
  • Exterior 40" TV with luggage door (n/a 29CK, CR models, and 40SRSS6) (standard 34GS, 37GS, and 40GS)
  • Flat screen TVs (diagonal inches) 32" or (2) 32", 32" & 40", plus 55" 40SRSS6 (depends on model)

Furniture

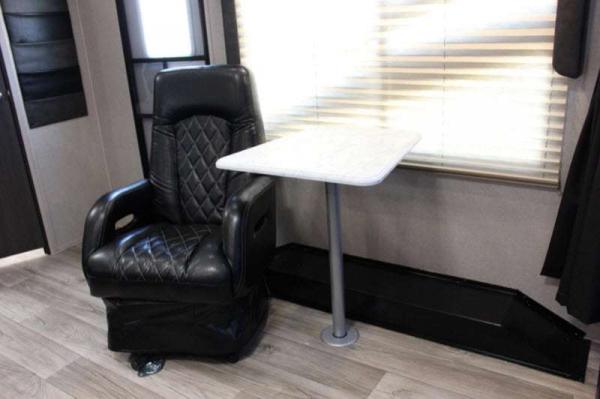

  • Two swivel /rocker chairs w/table & picture window

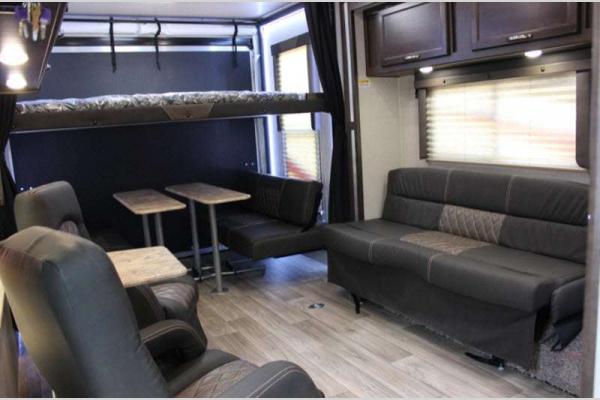

  • Rear power bunk w/futon and bunk with ladder (upper)
  • Rear power sofa bed and power bunk futon w/ladder
  • Living room fold-up sofa bed (road side)

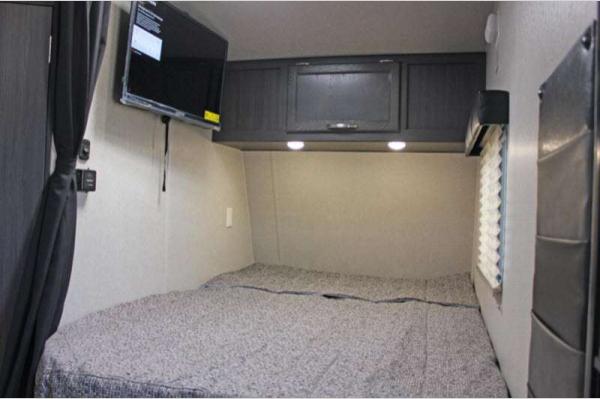

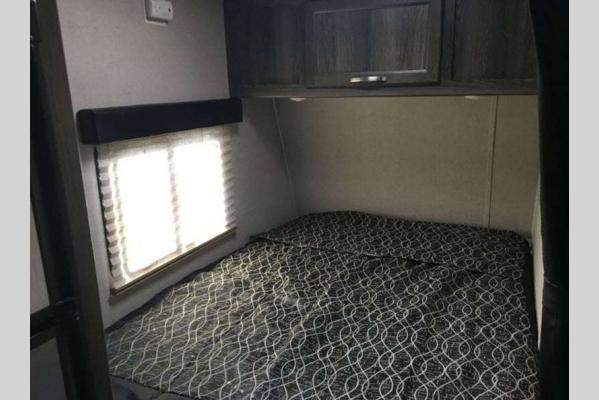

  • Pillow-top mattress w/coordinated bedspread (bedroom)
  • Memory foam mattress w/coordinated bedspread (bedroom) (optional)
  • Rear table and legs (n/a 29CK & 28CR, standard all others)
  • Opposing dinettes (optional)

Miscellaneous

  • Power and cooling upgrade package includes: 5.5 Onan generator upgrade, 13.5K BTU bedroom A/C, 50 Amp Service (n/a 29CK, optional all others)
  • Artic package includes: Heated enclosed tanks/valves, relfected floor insulation, heat ducting system for furnance, double insulation in ceiling (optional)
  • Upgraded 15K BTU A/C (29CK & 28CR only)
  • Bedroom Wardrobe slide out (n/a 29CK) (optional all others)
  • Bedroom Vanity slide out (n/a 29CK) (optional all others)
  • Central Vacuum system (optional)
  • Rear patio (optional, note: If 29CK has slide out the rear patio option is n/a)



Travel Trailer

Chassis

  • 102" Wide body platform (8" l beam)
  • 15" deluxe aluminum alloy wheels (IPO Chrome) (n/a 19SS, optional all others)

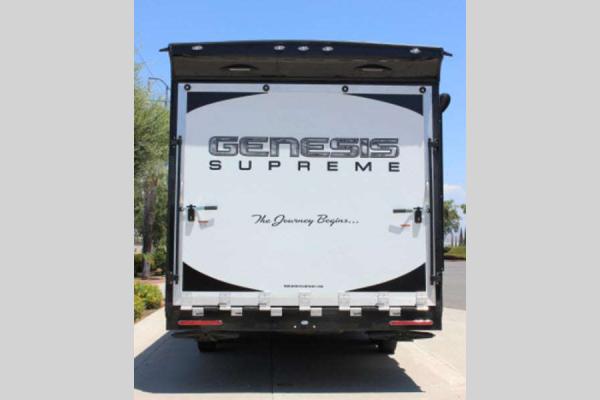

  • 7' Laminated ramp door with full-length latches
  • Fiberglass, laminated aluminum-framed sidewalls
  • Upgraded suspension system (optional)
  • Spare tire and carrier
  • Stab jacks (4)
  • Electric Tongue Jacek (optional)
  • Drive-on wheel wells (optional)
  • No wheel weels, flat-to-floor (n/a)

Exterior

  • LED high-end tail lights
  • LED running lights
  • Manual awning (n/a 30CK)
  • Powered awning (standard 30CK, optional all others)
  • Integrated rear spoiler
  • Walk-on roof w/folding ladder (27FS & 30CK only - optional)
  • Black tank flush
  • Dual 20 lb LP tanks
  • Thermo pane windows (30CK only - optional)
  • Rear patio cables (optional)

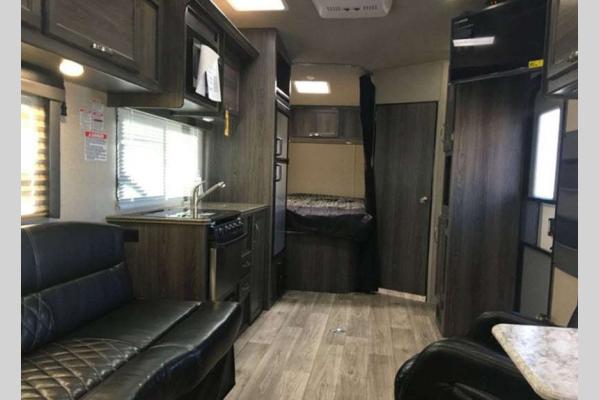

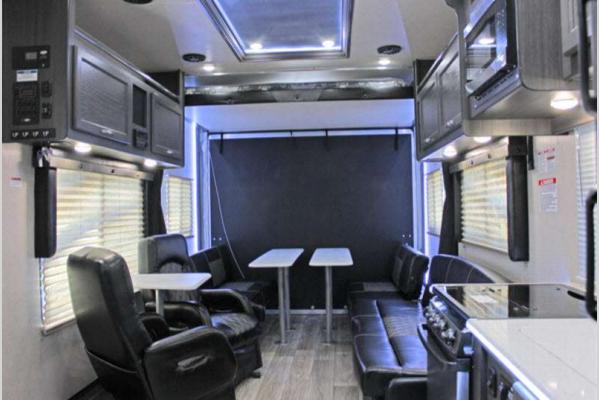

Interior

  • Crown molding (23SS only)
  • High-gloss laminated counter-tops throughout
  • Carpet kit (30CK only - optional)
  • Inset coffered ceiling panel w/LED and accent light (n/a 19SS & 23FS, standard all others)
  • LED interior lighting throughout
  • Magazine rack with key hooks
  • Pleated night shades throughout (standard 23SS & 30CK, optional all others)
  • Rear screen wall (optional)
  • Skylight above shower/tub (standard 19SS & 23SS, n/a all others)
  • Angled glass corner shower enclosure (23FS, 25FS & 27FS only)
  • Tub w/Molded surround enclosure and shower curtain (19SS and 23SS only)

Appliances

  • 160-Watt solar power system (optional)
  • DSI LP Water heater, 6 gallon
  • Heated/Enclosed tanks & knife valves (optional)
  • Furnace (BTUs) 30K
  • 4.0 KW Onan / 30 Amp / Transfer switch (n/a 19SS, standard 30CK, optional all others)
  • 5.5 KW Onan generator (30CK only - optional)
  • 40 Gallon fuel station (19SS optional, standard all others)
  • 13.5K BTU A/C living room
  • 15K BTU A/C (IPO 13.5K) (optional)
  • AM/FM/CD/DVD Player w/4 inside and 2 outside speakers
  • Large double door refrigerator (6 cu. ft.)
  • Large double door refrigerator (8 cu. ft.) (30CK only - optional)

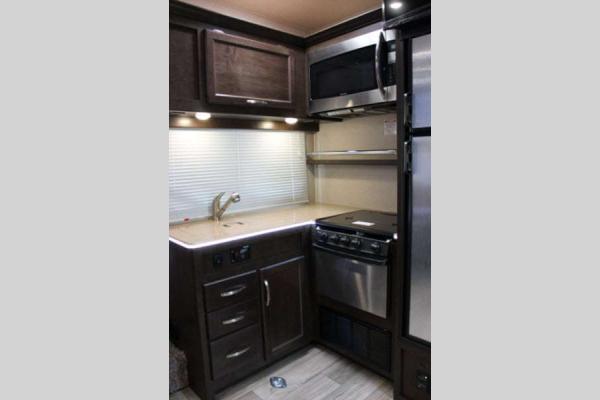

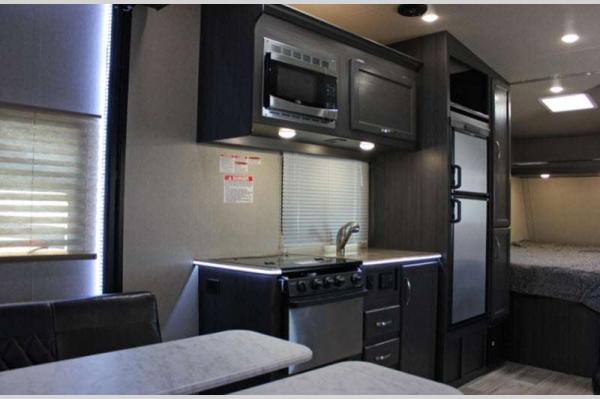

  • Three burner range /oven
  • Microwave
  • Stainless steel galley (micro, stove, refer panels) (optional)
  • 28" Flat screen TV (optional)
  • 32" TV - Living Room (n/a 19SS, standard 30CK, optional all others)
  • 32" TV - Bedroom (n/a 19SS, optional all others)

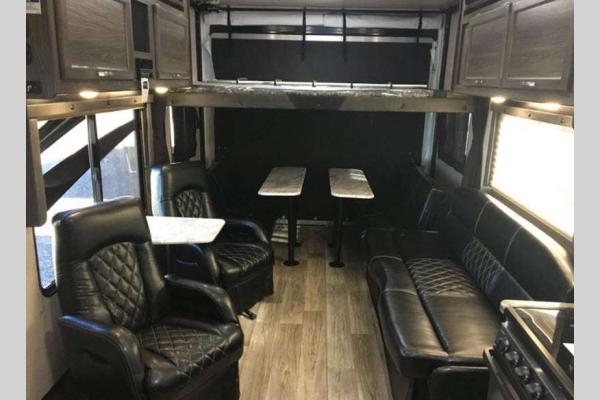

Furniture

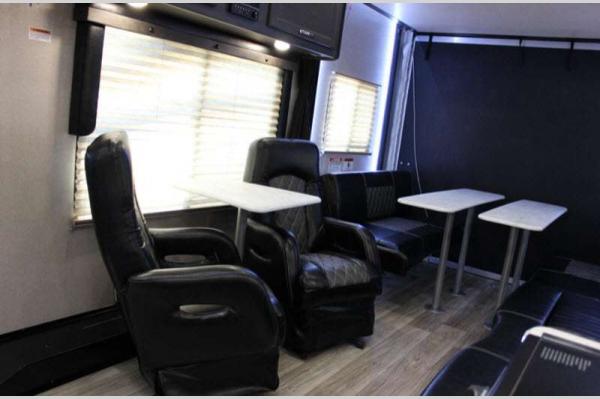

  • Two (2) swivel rockers w/table and picture window (30CK only, optional 23SS & 27FS only)
  • Two (2) swivel rockers (IPO sofa) (optional)
  • Single swivel rocker w/table (optional)



Please see us for a complete list of features and available options!



All standard features and specifications are subject to change.

Manu-Facts:

Genesis Supreme RV is a family-owned business that has been in operation nearly four years.  With a combined 65 years of RV experience, Genesis Supreme is led by one of the most talented management teams in the industry.  Our commitment to quality, design, and customer satisfaction is unsurpassed.  The staff and workforce of Genesis Supreme RV are industry veterans that take great pride in their workmanship and quality products.
